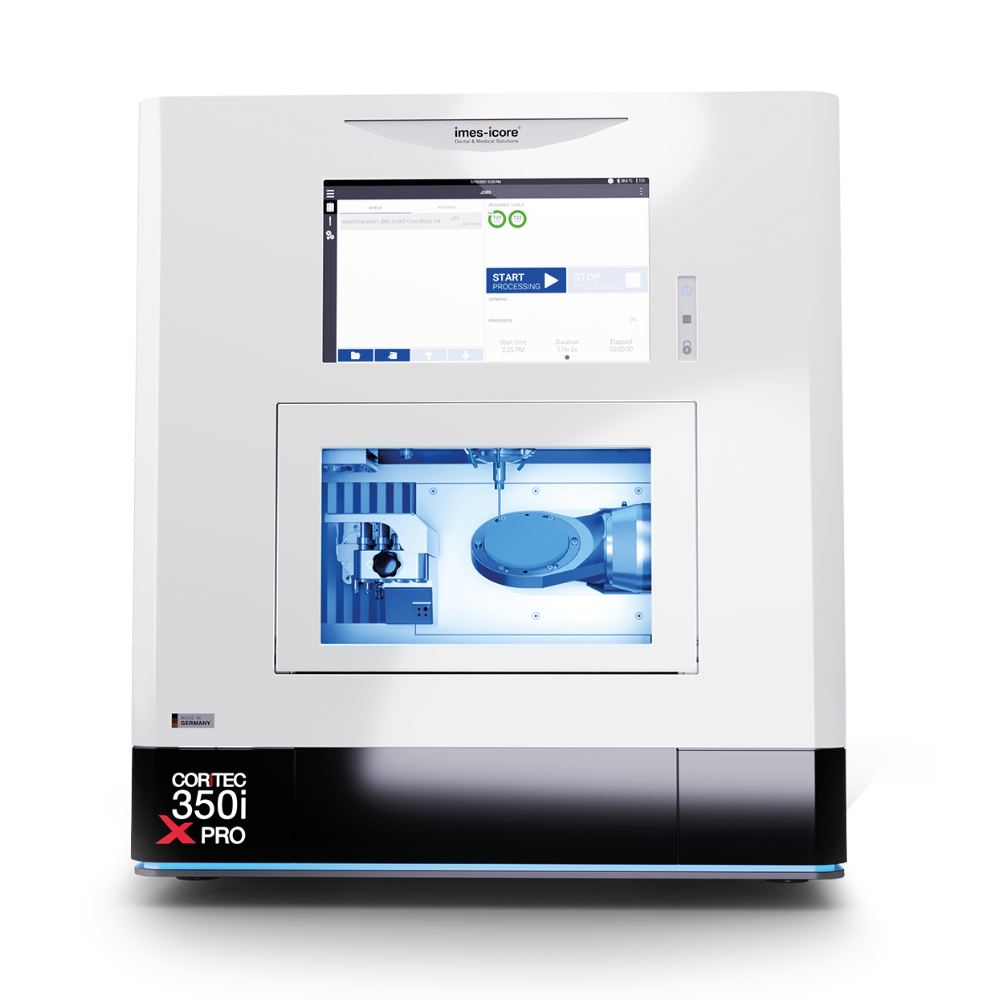

CORiTEC 350i X PRO The combination of new, perfectly tuned control and drive components ensures the highest performance in this machine segment. Processing times reduced by up to 50% combined with excellent surface quality allow significant increases in workload and optimize the price-performance ratio.

• 0 kW / 120 Ncm high-frequency spindle with up to 60,000 rpm (cooling unit required)
• Triple hybrid ball bearings
• Tool holder for 6 mm shaft (self-cleaning)
• 5-axis simultaneous machining
• Dynamic AC servo motors with absolute encoders,
• resolution 15 µm
• Real-time EtherCAT control with look-ahead function
• Integrated powerClamp zero-point clamping system, diamond-coated
• 2x blank holders made of stainless steel included
• Automatic 20-tool changer with chip protection and separately available exchange magazines
• Wet & dry processing for CoCr, titanium, zirconia, glass ceramics, preMilled abutments, composite, PMMA, PEEK, etc.
• Integrated ionizer (2-fold)
• Highly stable base structure made of polymer concrete
• Digital interior HD camera
• Housing: glossy white / rounded design
• Integrated control PC with 6″ full HD touchscreen
• Includes machine control software “SmartControl”
• Prepared for auto-calibration
• LED interior and base lighting
• RGB LEDs with status signaling
• Weight 220 kg
• Machine dimensions: 758 x 790 x 857 mm (WxDxH)
