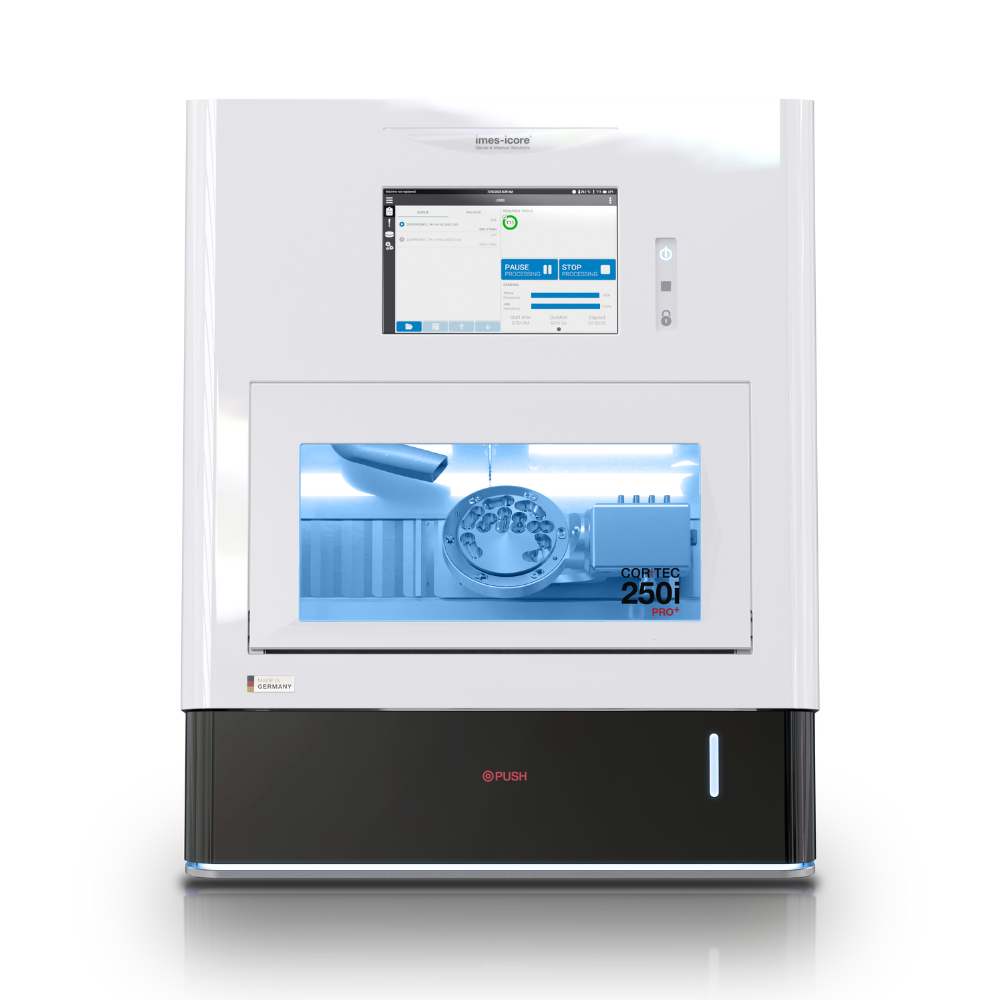

5-axis simultaneous machining
– Micro-step controller &motors in all axes
– wet & dry machining for CoCr, titanium,
zirconium oxide, aluminum oxide, wax, PMMA,
plastics, nano-composites, lithium disilicate &
glass ceramic blocks
– highly stable construction with cast aluminum
monoblock & industrial steel guides
– one processing station as rotary/swivel axis
with gearbox for vibration-free stability
– blank holder for 98mm blanks
– manual zero-point clamping system
– 2-fold integrated ionizer
– interior HD camera for distance control/support
– high-frequency spindle 1 kW with up to 60,000 rpm
– automatic 10-fold tool changer
– interchangeable tool magazine
– tool holder for 6 mm shank
– integrated precision tool length measuring probe
– integrated tank & circuit for cooling lubricant
– integrated control PC with 10.1″ touch display
– incl. CNC control software “SmartControl”
– automatic compressed air control
– automatic cleaning function
– auto-calibration (optionally available)
– tool life control with display
– tool breakage control
– temperature compensation
– LED interior & base lighting
– weight approx. 95 kg
– machine dimensions: 590 x 615 x 725 mm (WxHxD)
