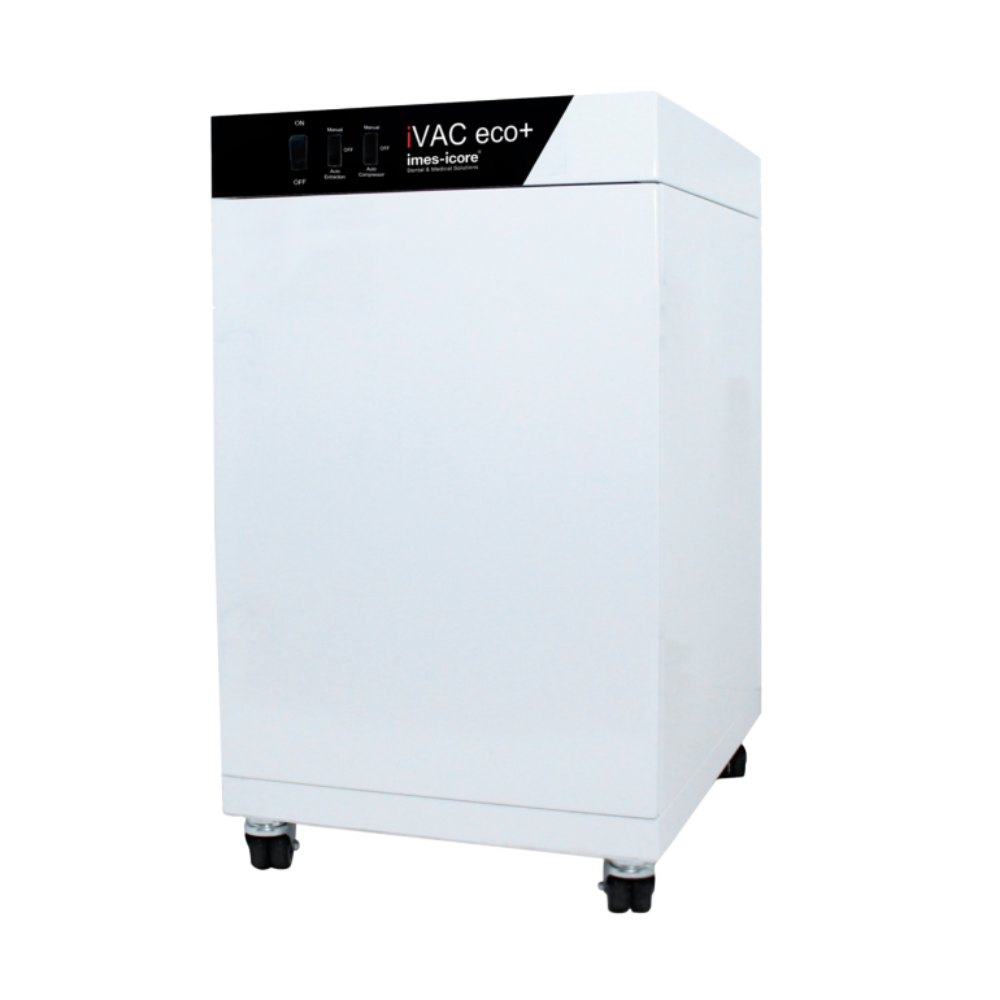

iVAC eco+ suction unit 110V-230V for fine dust incl. HEPA filter
SKU: 513002 0100
General
The iVAC eco+ is the universal solution for all table machines made by imes-icore. Very powerful, with a flow rate of up to 260 m³/h, adjustable power, brushless motor for a long life.
Suitable for:
- CORiTEC 150i series
- CORiTEC 250i series
- CORiTEC 350i series
Technical details:
- Compact solution: 440x460x750mm (WxDxH)
- Brushless turbine
- Automatically controlled by the milling unit
- Capacity: 260m³/h
- Power: 1200W
- 115V-230V, 1ph, 50/60Hz
- Weight: 30kg
- FLC: 12.5A
- Noise level below 75dB (A)
- Prefilter efficiency F8 95% @ 0.9µ
| Weight, kg | 30.0000 |
|---|---|
| Dimensions WxDxH, mm | 440x460x750 |
| Machine / product affiliation | CORiTEC 150i dry, CORiTEC 150i PRO, CORiTEC 250i , CORiTEC 250i PRO, CORiTEC 250i Loader PRO, CORITEC 350i, CORiTEC 350i Loader, CORiTEC 350i PRO, CORiTEC 350i Loader PRO, CORiTEC 350i PRO+, CORiTEC 350i Loader PRO+, CORiTEC 350i PRO ion, CORiTEC 350i Loader PRO ion, CORiTEC 350i X PRO, CORiTEC 350i Loader X PRO |
