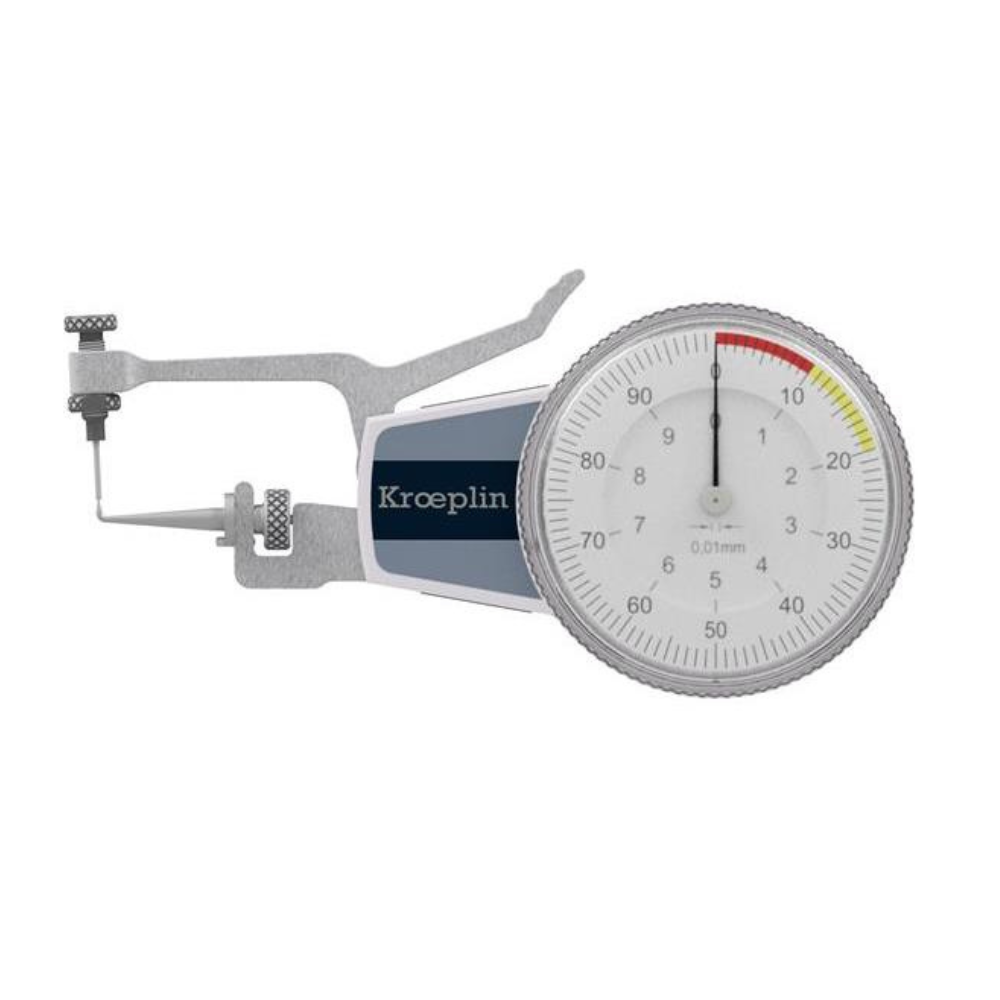

Kroeplin E110D External Dental Measurement Caliper
SKU: E110DCAL
Kroeplin E110D Calibration Tool for Milling Machine is a precision measuring instrument designed for checking fine dental restoration dimensions.
The tool is used to determine wall thicknesses, base thicknesses, incisal margins, and fissures of crowns. Its fine measuring scale supports accurate dimensional verification during dental laboratory and CAD/CAM workflows.
Technical Specifications
- Measuring range: 0–2 mm
- Scale interval: 0.01 mm
| Type | E110D |
|---|---|
| Display mm / inch | mm |
| Application | Dental devices |
| Measuring span Mes | 2 mm |
| Measuring range Meb | 0 – 2 mm |
| Range of indication Azb | 0 – 10,5 mm |
| Scale interval Skw | 0,01 mm |
| Max. permissible errors G | 0,02 mm |
| Repeatability limit r | 0,01 mm |
| Measuring force F min. | 0,8 N |
| Weight | 140 g |
| Reference temperature | 20 °C |
| Reference temperature | 10 – 30 °C |
| Storage temperature | -10 – 50 °C |
| Inch-version | on demand |
Key Features
- Precision measuring tool for dental restorations
- Suitable for crowns, margins, and fissures
- Fine 0.01 mm scale interval
- Supports accurate wall and base thickness checks
- Useful for dental laboratory quality control workflows
Recommended Equipment & Materials
- Dental Milling Machines
- Used in CAD/CAM workflows where restoration dimensions require verification after milling.
